Den Automation – API

With the very sad news that Den Automation is having financial troubles, I decided it was time to revisit my investigation into the protocol that Den uses.

I had read on their website that they used both a cloud based and local network approach. In fact, this was one of the things that appealed to me most. Offering local control is an important aspect in any smart home as it insulates you from internet outages.

I had looked into their protocol a few weeks after setting up my Den hub, but it turned up a dead end for me.

Based on what I’d learned my own adventures in IoT, I started working under the assumption that the local protocol would be HTTP based and use probably use mDNS. Using Charles, the populate iOS proxy, I was able to capture some of the traffic from my phone whilst using the Den app.

Unfortunately, all the requests were targeted at Den’s cloud. I was able to see the details of my deployment, the various switches and sockets, but I wasn’t too interested in taking this approach, since I had Google Home and Alexa integrations already setup.

I fired up WireShark and used Apple’s guide on how to intercept all traffic from my iPhone – https://developer.apple.com/documentation/network/recording_a_packet_trace

I immediately spotted a HTTP request, which was a protocol switch request. More digging and some Google-fu and I leaned that this was just MQTT over websockets on port 1884

I loaded up MQTT Explorer and fed in the details (IP address of my hub and Port 1884) but got a 401 (Authentication failed). This was progress as I knew some thing was listening.

Fast forward a few hours and I’d extracted this packet. Thanks to this protocol document ( http://public.dhe.ibm.com/software/dw/webservices/ws-mqtt/MQTT_V3.1_Protocol_Specific.pdf ) I was able to determine this was a connect request (0001), which contained a username and password.

The request to login, with a client name of MQTT and the username and password

Armed with some credentials, I fired up MQTT Explorer and was connected.

After a few minutes, I started to get information over the connection! MQTT Explorer includes the # and $SYS/# subscriptions, so it basically gets everything published by the hub.

I knew that the device was one of the double sockets (the TV was on) and it was sending measurements!

{“43de2329-8808-57bc-af5b-ea01bd6a6d11”:{“online”:true},”c8de59a4-29e5-52ad-84b5-2574f005544b”:{“software”:[{“type”:”USER_1″,”version”:”1.3.0″}],”battery_level”:29,”online”:false,”status”:{“0”:{“last_state_changed”:”2019-08-09T15:46:24Z”},”1″:{“last_state_changed”:”2019-08-09T15:46:24Z”}}},”7039ee52-d25a-59c5-b957-844ff067233f”:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:false,”status”:{“0”:{“state”:0,”shutter”:1,”nfc_tag”:{“uid”:”04:cd:be:d2:35:5e:80″,”atqa”:”0x44″,”sak”:”0x00″,”version”:0,”name”:””,”type”:”APPLIANCE”,”keep_on”:false,”timeout”:{“enabled”:false,”duration”:0}},”last_state_changed”:”2019-10-09T11:18:17Z”},”1″:{“state”:0,”shutter”:1,”nfc_tag”:{“uid”:”04:f2:97:ca:35:5e:80″,”atqa”:”0x44″,”sak”:”0x00″,”version”:0,”name”:””,”type”:”APPLIANCE”,”keep_on”:false,”timeout”:{“enabled”:false,”duration”:0}},”last_state_changed”:”2019-10-09T10:59:42Z”}}},”1cef1fcd-3aa7-5a49-80b4-ea98b85c5827″:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:true,”status”:{“0”:{“state”:1,”shutter”:1,”nfc_tag”:{“uid”:”04:61:8a:7a:33:5e:80″,”atqa”:”0x44″,”sak”:”0x00″,”version”:0,”name”:””,”type”:”APPLIANCE”,”keep_on”:false,”timeout”:{“enabled”:false,”duration”:0}},”last_state_changed”:”2019-10-09T18:04:06Z”},”1″:{“state”:1,”shutter”:1,”nfc_tag”:{“uid”:”04:5a:b2:d2:35:5e:81″,”atqa”:”0x44″,”sak”:”0x00″,”version”:0,”name”:””,”type”:”APPLIANCE”,”keep_on”:false,”timeout”:{“enabled”:false,”duration”:0}},”last_state_changed”:”2019-10-09T18:04:08Z”}}},”c0713ae1-1913-5ab7-944b-d94ea4b5477d”:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:false,”status”:{“0”:{“state”:0,”is_ready”:true,”last_state_changed”:”2019-10-09T17:30:34Z”}}},”4f832cb2-824f-58dc-87ad-5a89e121b653″:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:true,”status”:{“0”:{“state”:0,”is_ready”:true,”last_state_changed”:”2019-10-07T17:23:55Z”}}},”59607912-dda1-5e97-9e3d-6b065b9288db”:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:false,”status”:{“0”:{“state”:0,”is_ready”:true,”last_state_changed”:”2019-10-08T18:59:02Z”}}},”5a008677-5c2e-5405-a6b8-357a7e64642a”:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:true,”status”:{“0”:{“state”:0,”is_ready”:true,”last_state_changed”:”2019-10-08T21:19:37Z”}}},”8016c79f-8502-5b5c-b480-bb6361af1398″:{“software”:[{“type”:”USER_1″,”version”:”1.4.0″}],”online”:true,”status”:{“0”:{“state”:0,”shutter”:0,”nfc_tag”:null,”last_state_changed”:”2019-10-07T11:13:41Z”},”1″:{“state”:0,”shutter”:0,”nfc_tag”:null,”last_state_changed”:”2019-09-29T12:54:36Z”}}}}

Switching stuff on and off

After more digging around, I eventually capture the Publish command used to control the state of the individual devices.

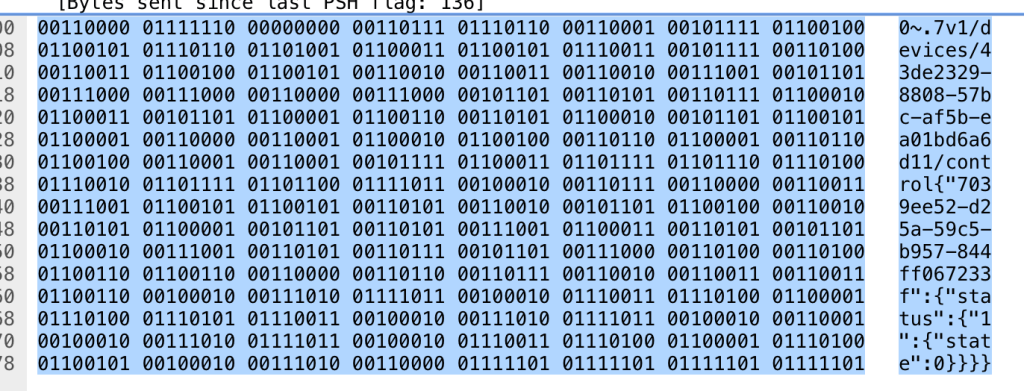

A 142 bytes WebSocket message sent when I turned on a switch
The content is an MQTT publish (0011)

This enabled me to update the state and thus turn the switches on and off.

I’ve created a simple web app – https://denclient.azurewebsites.net/ – which can be used to control the connected hardware. You just need to use the same process as I did to sniff the packets.

At the time of writing this, the Den app was still working for me, which enabled me to perform some basic packet sniffing. Since I performed this investigation, the Den App is no longer working. I presume that AWS/Azure have killed the Den backend due to unpaid bills.
