Testing my HolyIoT nRF54L15DK

I’m trying to build a Matter enabled dual temperature sensor.

I’ve made a few attempts at mounting a XIAO nRF52840 on a PCB, but they have been pretty fruitless. Lack of skill mostly.

A few weeks back, in a fit of frustration, I started looking into whether a module might work. Modules don’t contain everything that a typical dev kit does, but they include more than the raw chip itself. I found some interesting modules, but most had pins on the bottom, putting them beyond my skill.

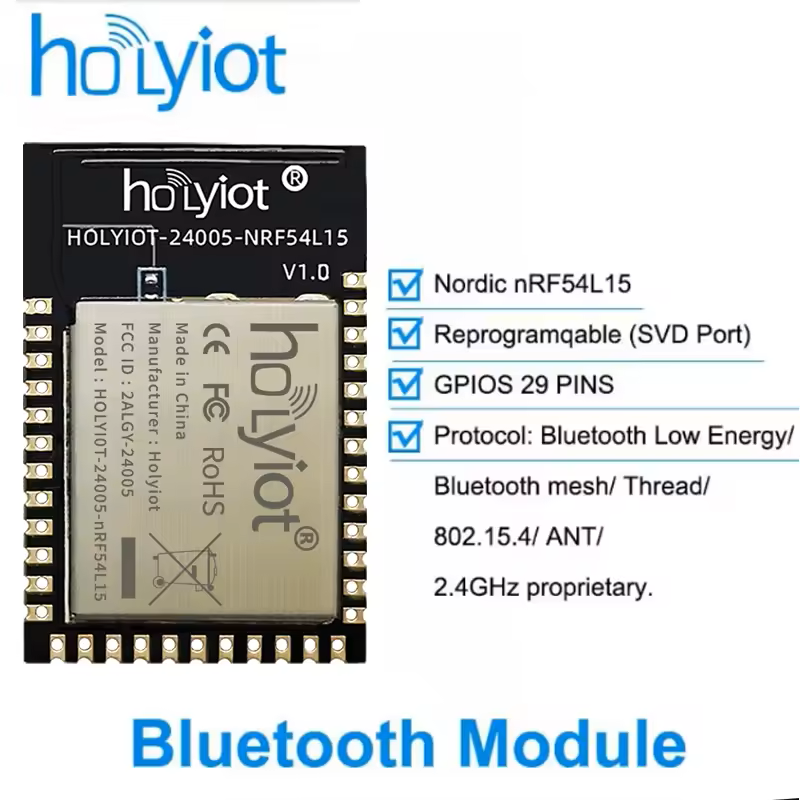

I then happened upon HolyIoT, a company in China that make modules and their nRF54L15 module looked ideal.

Integrated antenna and, more importantly, all the pins available on the edges. This means I *should* be able to solder it with an iron. Or use my little hot plate.

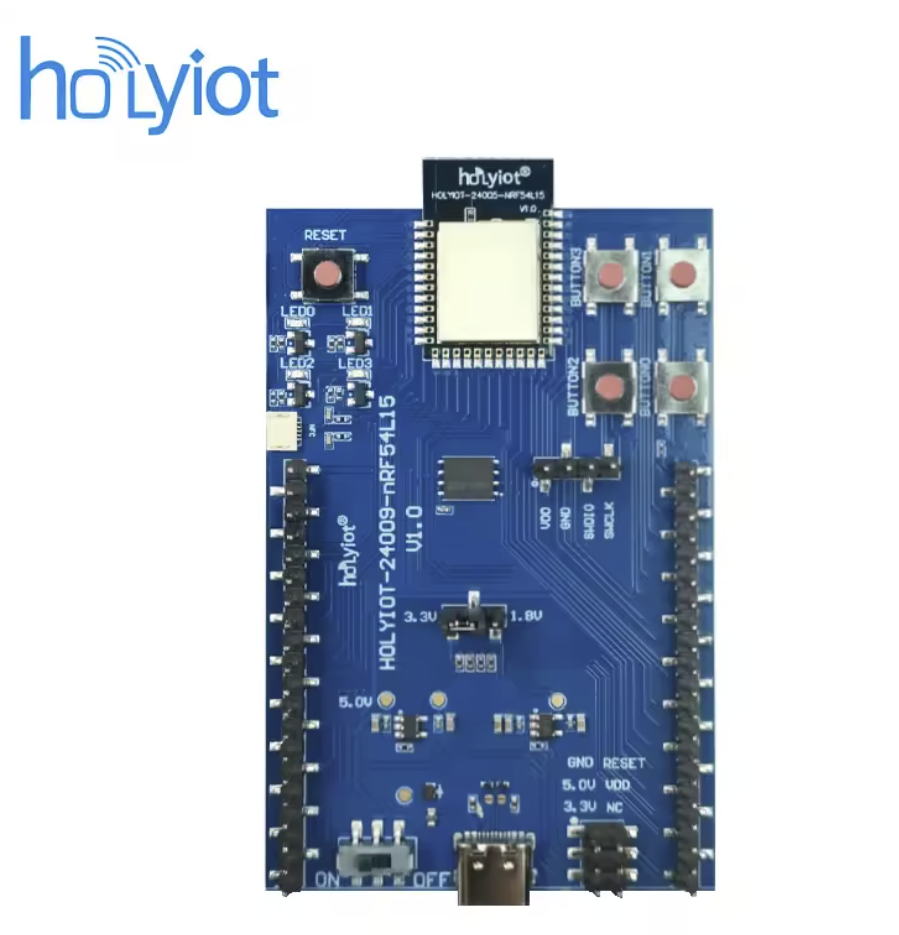

I then discovered they offer a dedicated DK for this module!

Thankfully, like the modules, it wasn’t very expensive and I figured it was worth the investment.

Wiring it up

As this is a pretty bare metal DK, unlike the Nordic ones, flashing required my J-Link. The Nordic kits can be flashed using a USB connection, but you get what you pay for.

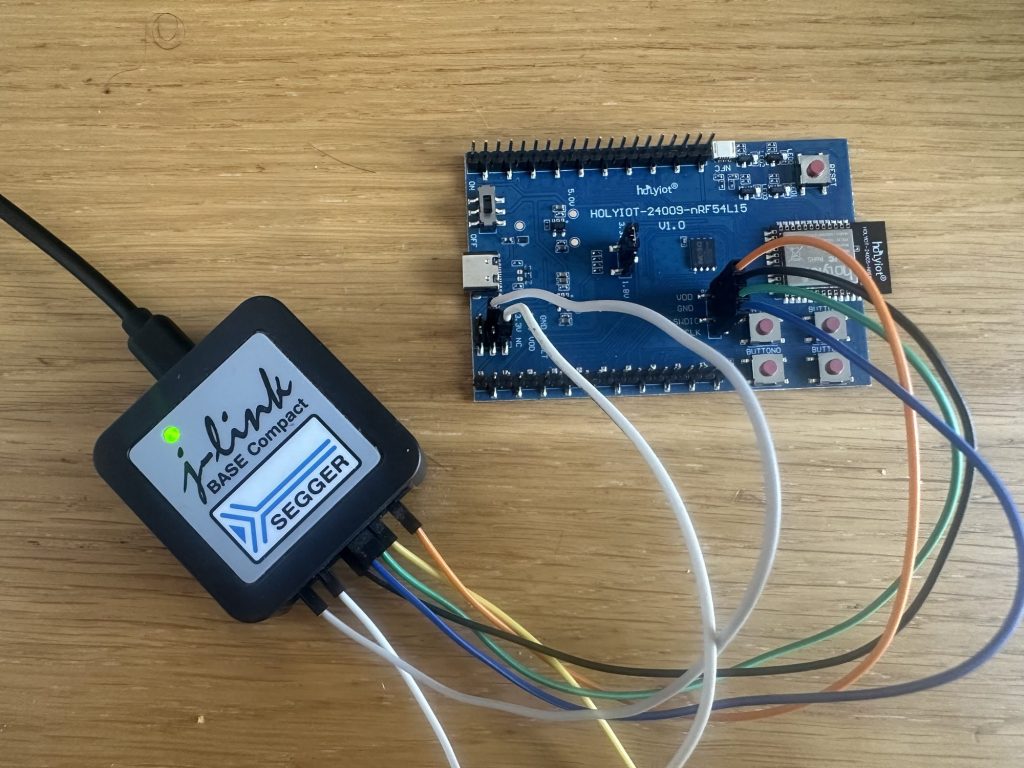

I wired up the SWD pins, using the 5v input to match the output of my J-Link.

As I’m using the J-Link to power the board, I needed to use J-Link Commander to enable the power. I’m on Linux, so I start the commander using this command

./JLinkExe

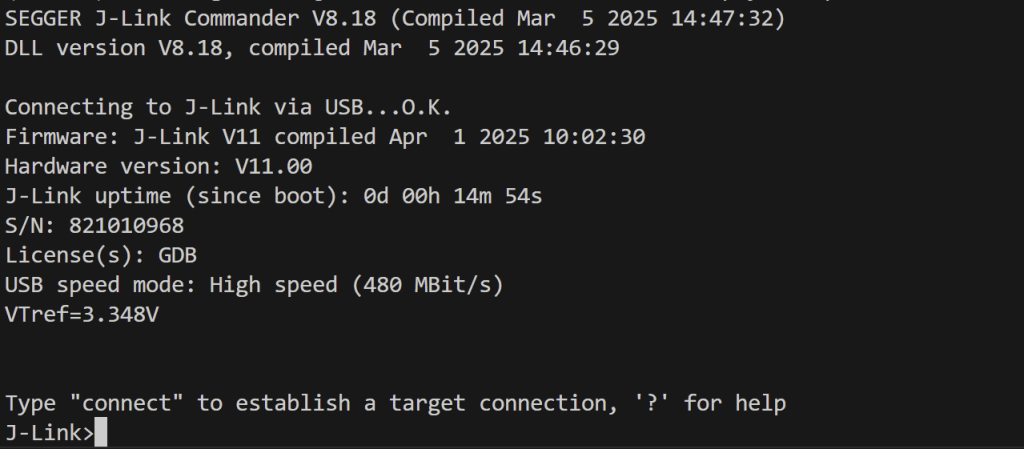

And the application starts up

By default, the Power pin of my BASE Compact is switched off, so I enter the following command

power on

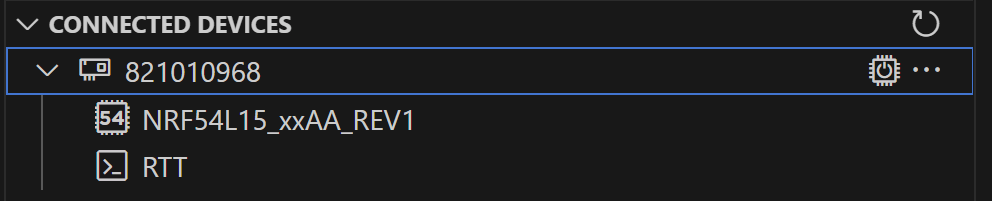

I then refreshed the Device pane of the VS Code nRF Extension and the nRF54L15 was detected. I then tried RTT and that connected without issue!

This meant, I hoped, that I had an SWD connection! So far, so good.

Flashing something onto the board

Blinky was already running on the board, so I decided to try and build and flash that sample again.

Start small, eh 🙂

I’m using NCS v3.0.2 for this.

To compile the application, I first start the west environment. I navigate to where the Nordic Connect Software is installed

cd ~/ncs

I then initialize a west terminal

nrfutil sdk-manager toolchain launch --shell --ncs-version v3.0.2

I then setup the environment variables

. ./v3.0.2/zephyr/zephyr-env.sh

With my environment setup, I opened the blinky sample

 cd v3.0.2/zephyr/samples/basic/blinky

ran the west build command, setting my board as the nrf54L15dk (this is strictly for the Nordic version, but it works)

west build -b nrf54l15dk/nrf54l15/cpuapp --pristine

As I’m on Windows 11 and using WSL, I have to share the USB port in order to flash. I start by running this command in Ubuntu. I don’t really know what this does, but the usb sharing doesn’t work without it.

sudo modprobe vhci_hcd

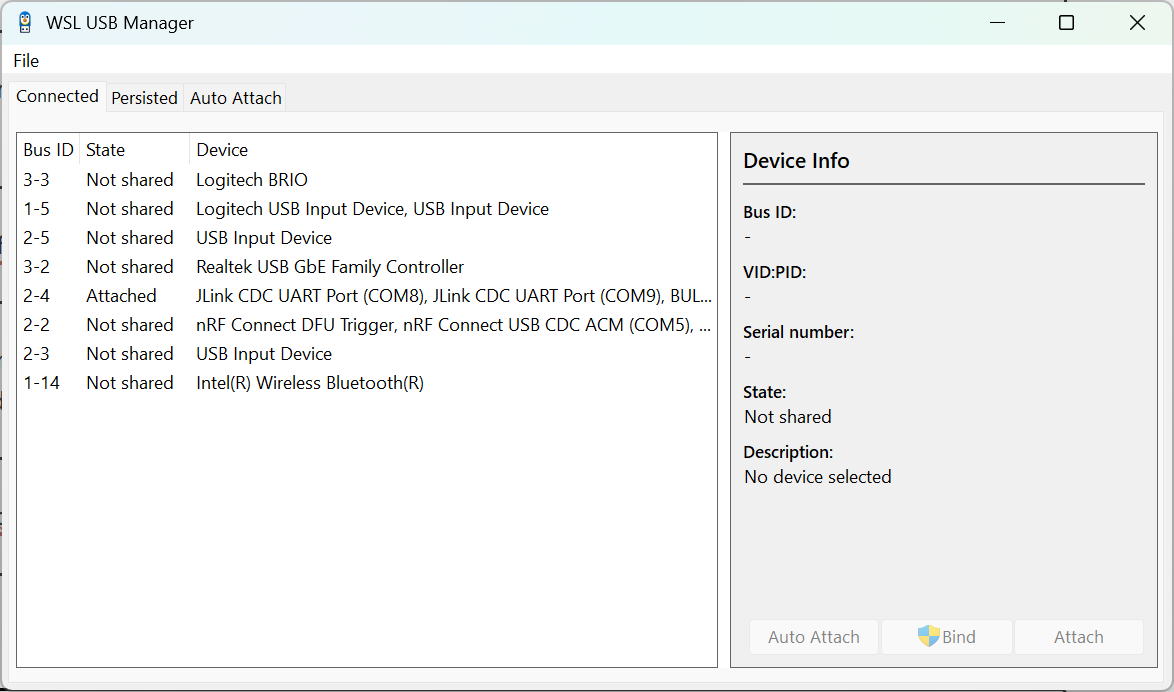

I then pick the right device from the list displayed by WSL USB Manager (a utility I downloaded)

With the JLink device attached, I proceed to actually flashing

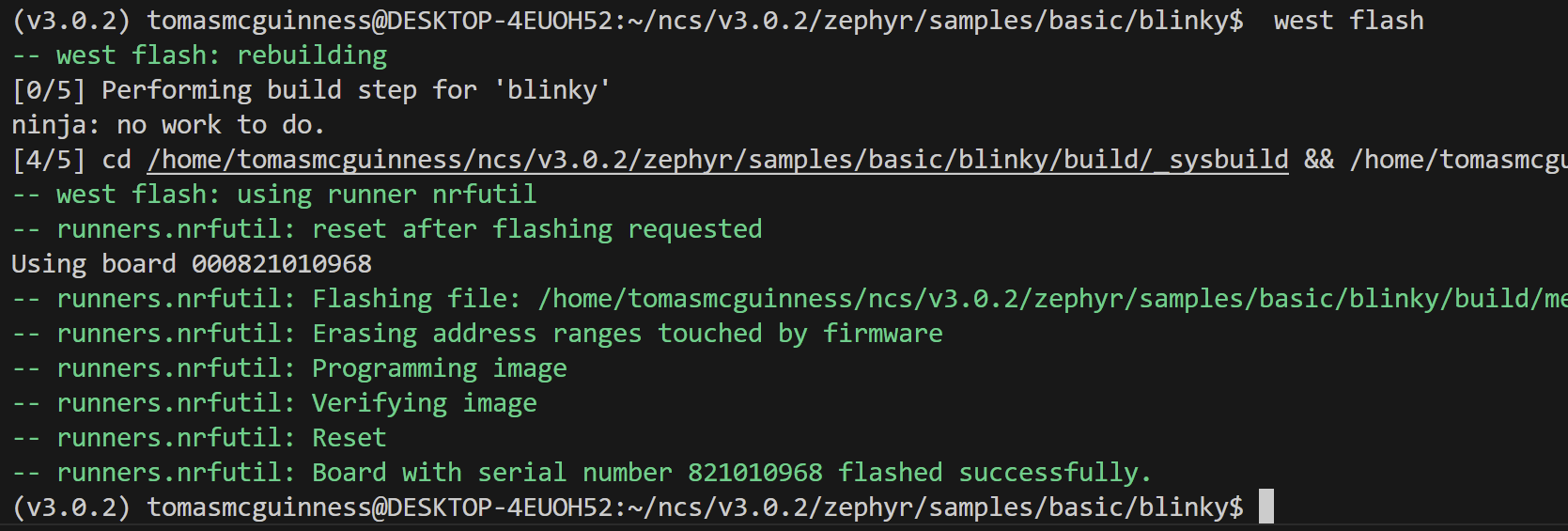

west flash

and off it went

Once done, the LED started flashing again. Which I’m taking to mean it worked!

Flashing the Button sample

To mix things up, I tried the button sample.

That worked too.

Summary

Not much to say. The dev kit works in-so-far as I was able to build and flash two samples.

For less than £14, it’s good value. It’s not as full featured as the Nordic nRF54L15-DK, but it’s less than half the price.

I also emailed HolyIoT asking for a PCB footprint I could use with KiCad. They came back in less than half an hour!
